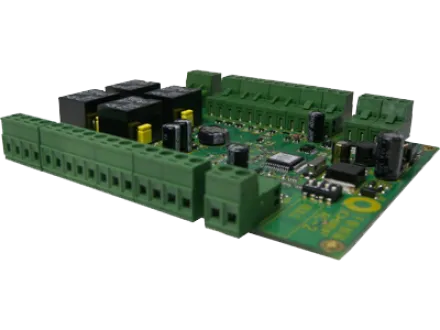

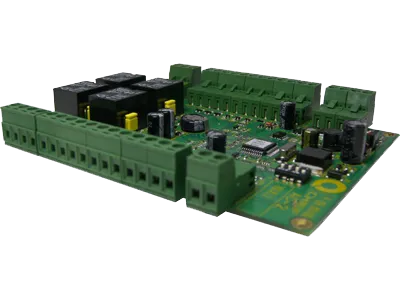

SOYAL 2 DOOR WG CONTROLLER - AR-721E

Panel kontrol jaringan multidoor (Multi Door Networking Control Panel) /

Name
2 Door WG Controller
Description
Phased Out! Replaced by AR¬721E/Ei¬V2

Features
• Support standalone / Networking operation mode, and autoswitch mode function
• Individual controller with 2 external WG reader for more system security
• 8 sets of DI for egress button input, tamper resist, door contact
• 4 sets of relay for lock, alarm, and other proximities
• Builtin Watchdog to prevent system from hanging
• User capacity: 3,000; Event log: 1,456
• Access mode: card only, card or pin, card & pin, pin only
• Antipassback
• Calendar builtin
• Supports functions like door sensor error, dooropen too long, force open alarm
• Supports 11 time zone in networking mode
• 2 sets of autoopen zone in standalone mode
• Extendable with other brand devices

Specification
User Capacity	3
Event Log	1,456
Power Supply	9-24VDC
Power Consumption	< 3W
Communication Interface	RS-485
Data Transfer Rate	9600bps(N,8,1)
Operating Temperature	-20℃ to +60℃
Digital Input	2 Egress(R.T.E.) / 2 Door contactr / 2 Housing open detection / Prepared for 2 DI
Relay Output	2 Lock Relay / 1 Alarm Relay / Prepared for 1 Relay output
External Port	WG Reader x 2 Ports
External RS-485 Reader	No
External WG Reader	2 WG Keypad Reader(Controller power supply)
Anti-pass-back	Yes
Door Group	No
Time Zone	63
Housing Material	PC
Dimensions(mm)	111(L)X130(W)X20(H)
Weight(g)	170±10
Miscellaneous	DIP switch: 4 (Node ID: 1~16)
