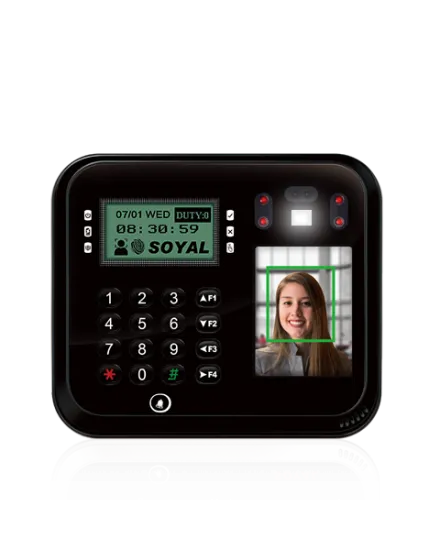

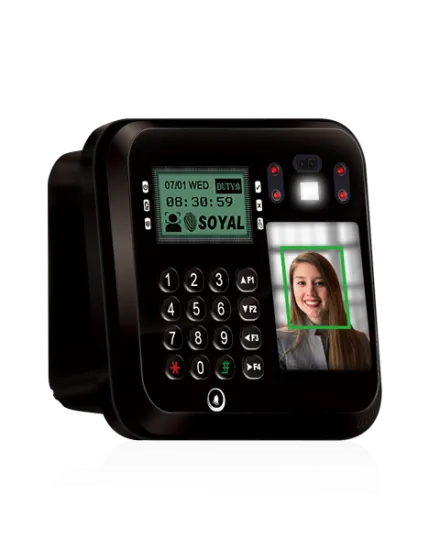

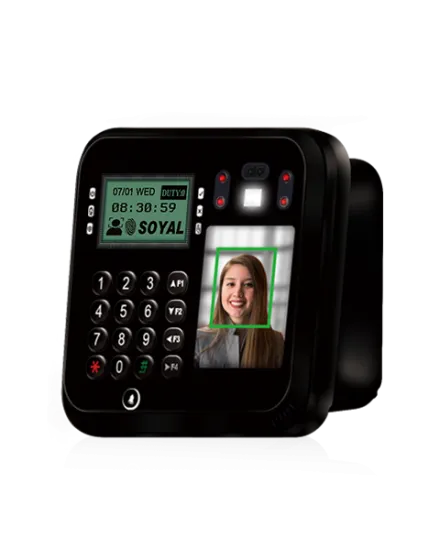

Graphic Display Multi-Function Proximity Controller

Dual cameras live dynamic face expression detection Access denied when using pictures, videos

AR-837-EA

Graphic Display Multi-Function Proximity Controller

Dual cameras live dynamic face expression detection Access denied when using pictures, videos

Features

RS-485 and TCP/IP communication interface

Built-in Watch Dog to prevent the halting, Ingress Protection,

Built-in set of Alarm, Holiday setting, auto-open zone settings,Auto-Open Zone editable, input of door contact, offering the alarm system of both door opening too long and beingforced to open

User capacity：16,000 / 32,000 / 65,000

Lift Contro: 64 floors/32 floors/16 floors

Data reduancy while system disconnected, identify users and
store event log up to 32000 records

Access Mode: Face only, Card only, PIN only, Card and PIN ,Face and PIN , Face and Card and PIN

2 Exit Switch, Door Contact and Door Output to wiegand

Built-in Multi-Output: Door Lock / Alarm / Arming / Duress /Security trigger signal

125kHz and 13.56MHz can be used simultaneously two channelsIntelligent to shift for standalone or networking mode
while system disconnected

Support SOYAL SECURITY COMMUNICATION encryption
(SSC) to enchance security of communication

Capacitor Door Bell Button: Built-in independent capacitor doorbell button and doorbell output, which can be used with various types of door bells for visitors.

Specification

Frequency / UID Bits / RF Reading Range

	B (125Khz)	D (13.56Mhz)	S (Dual Band)
Frequency	ISO18000-2: EM4001 and EM4095 compatible	ISO14443 /ISO 7816-4 Mifare Ultralight, Classic, Plus / DESFire EV1, EV2 / NFC (card simulation) /ISO15693 / Felica	125kHz: ISO18000-2: EM4001 and EM4095 compatible 13.56MHz: ISO14443 /ISO 7816-4 Mifare Ultralight, Classic, Plus / DESFire EV1, EV2 / NFC (card simulation) /ISO15693 / Felica
UID Bits	24~64 Bit (Adjustable)
RF Reading Range	5-15 cm	2-5 cm	2-15 cm

RFID Crypto / Communication interface

	B (125Khz)	D (13.56Mhz)	S (Dual Band)
RFID Crypto	—	CC Certification: AES Crypto comply with EAL5+
Host	RS-485 (9600 bps) TCP/IP (Optional By Order) POE (Optional By Order) SSC (Soyal Security Communication)
Serial	TTL UART (4800~115200 bps) X1 (half-duplex)
Wiegand Input	Wiegand 26~64
Wiegand Output	Wiegand Data 0, Data 1 and Arming Output, Duress Output share the same terminal

*SSC (SOYAL SECURITY COMMUNICATION) :To enchance security of communication

DI/DO (Doors Control:2)

	Main Controller	Wiegand Output Port
DI	Egress X1 Door Status X1	Egress X1 Door Status X1
Door Lock Output	Door Lock Relay X1	Open Collector X1
Alarm Output	Relay X1
Wiegand Port	—	Wiegand Data 0 Intput X1 Wiegand Data 1 Intput X1 Red LED Output X1 Green LED Output X1 Beeper Output X1
Open Collect Output	Arming Output X1 Security Trigger Signal X1 Duress Output X1
Tamper	Limit switch (1 Form C/ 1000mA / 30VDC)

User Capacity / Floors Number / Event Log

User Capacity / Floors Number	16,000 Users/64 Floors (Default value)；32,000 Users/32 Floors；65,000 Users/16 Floors
Event Log	32,000

Hardware Specifications

Power Voltage		9-24VDC
Flash memory		Capacity 32Mb (The user data and event logs can be stored for more than 10 years after power off)
RTC		RTC clock can be maintained for 14 days after power off, and the time error per week is within 1 minute (vary depending on the installation environment)
CPU		ARM Cortex M3 (32 bits)
Power Consumption		<5W
Indicator	LED	6 LED (Green/ Red)
Indicator	Buzzer	1
TAMPER		Limit switch (1 Form C/ 1000mA / 30VDC)
LCD Panel		128*64 (4 line messages, 16 Characters each line)
Housing Material		ABS
Color		Edge: Black / Silver
Keypad		lluminated Rubber
Dimension (mm)		128(H)X147(W)X60(D)
Net Weight(g)		approx. 340
Ingress Protection		IP65
Environment	Operating Temperature	-20℃ ~ +70℃
	Storage Temperature	-40℃ to +75℃
	Operating Humidity	0%~90% (non-condensing)
	Storage Humidity	0%~95% (non-condensing)

Face Recognition Specifications

Verification Speed	1:3000 < 3.0 Sec
Face Capacity	3,000 (User address must be within range 0~2999)
Image Screen	2.8 TFT LCD Screen (320*240)
LCD Screen for Programming	128*64 Menu LCD Screen
Camera	RGB(640480) + IR(640480)
Assistant Exposure Light	White LED / IR high brightless LED
FAR (False Accept Rate)	≦0.0001%
FRR (False Rejection Rate)	≦0.4%
TAR ( True Accept Rate)	≧ 99.6%

AR-837-EA Graphic name
