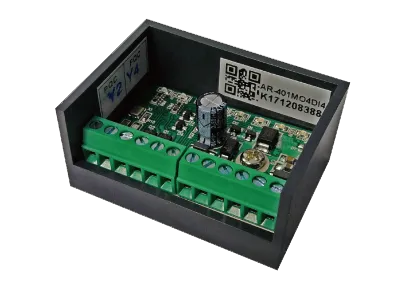

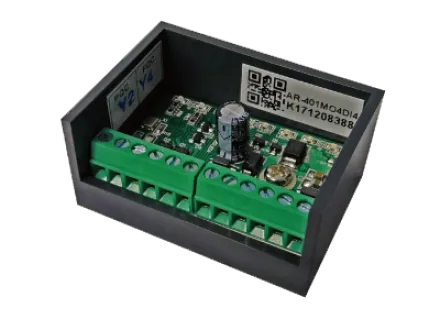

AR-401MO

Name
4DI/4DO Controller

Features
This Mode is used for Mailbox application.
AR401MO should be connected with SOYAL Controller via RS485 interface.
One unit of AR401MO can be controlled two Mailbox.
DI/DO Function Description for Mailbox Application
• DO1/3：Cabinet Lock Output
• DO2/4：Indicator for Letters inside
• DI 1/3：Delivering Letters Sensor
• DI 2/4：Door/Cabinet Sensor

Specification
Power Supply	9-24VDC
Communication Interface	RS-485
Channel	4 DO / 4DI
Communication Baud Rate	9600bps(N,8,1)
Protocol	HEX Command or Mobus
Power Consumption	< 1W
Indicator	Power
	TX/RX
	D.O.
	D.I.
Operating Temperature	-20℃ ~ +80℃
Dimensions(mm)	47(L)X35(W)X22(H)
Housing Material	ABS
Weight(g)	23±5
