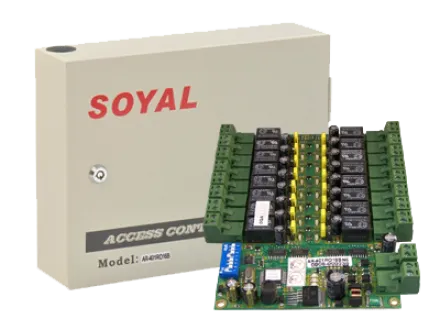

Pengontrol yang dapat diprogram AR-401-IO-0016R 1 ar_401ro16b

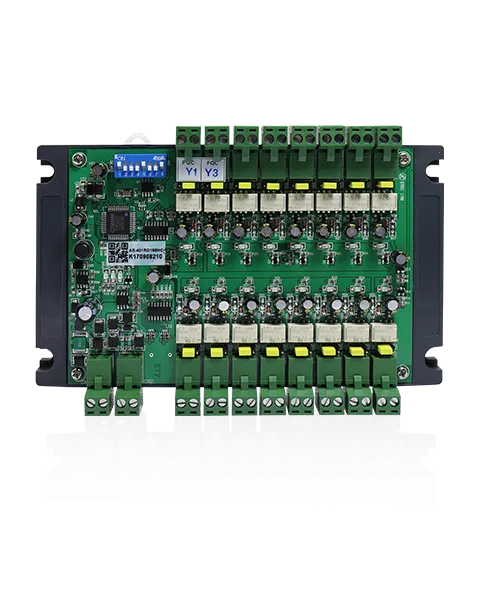

Pengontrol yang dapat diprogram AR-401-IO-0016R 2 ~blog/2022/4/3/ar_401__produk__dalamnya

Pengontrol yang dapat diprogram AR-401-IO-0016R 3 ~blog/2022/4/3/feature_1

AR-401-IO-0016R

Name
RS485 Communication Output Module (16 Relay Output)
Description
16-ch Relay Output Controller suitable for elevator control and mailbox management system

Features
• Communication: RS485
• 16 Form C Relay Output
• 16 COM. were dispatched 16 Relay
• N.O./ N.C. select via Jumper
• Meet the in Taiwan fire regulations standards

Specification

Interface
Ethernet	—
Serial port	RS485 X1
Baud Rate	9600 bps (N,8,1)
Inputs	—
Outputs	16 Relay Output (Form C)1A/30VDC
WG port	—
Specifications
PoE		—
Protocol		Modbus, Soyal
Serial Buffer		—
LED Indicator		Power: Tx/Rx, D.O./D.I
Watchdog Function		YES
Bulit-in linkage function		YES
Surge Suppression		400W peak power dissipation. Clamping time < 1 picosecond (theoretical)
		Power: bi-directional avalanche breakdown device.
		RS485 bi-directional avalanche breakdown device.
Fuses		Power & RS485 both with PTC Protector
Isolation		Input optical isolation 5kV
Power Supply		9-24 VDC
Power Consumption		<8W
Dimension(mm)	PCB	150(H)x100(W)x20(D)
	Panel Mounting Base	175(H)x100(W)x20(D)
	Metal Box	180(H)x231(W)x62(D)
Net Weight (g)	PCB	approx. 100
	Panel Mounting Base	approx. 182
	Metal Box	approx. 1760
Network/Device setting		701Server, 701Client, Commview.exe
OS Supported		Windows 7/8/10, Win Server 2008/2012/2016
Operating Temperature		-20℃ ~ +70℃
Certifications
LVD	EN 62368-1
EMC	EN 55032
EMS	IEC 61000-4-2 ESD: Contact 6kV; Air: 8kV
	IEC 61000-4-3 RS: 80MHz to 2.7GHz: 10V/m

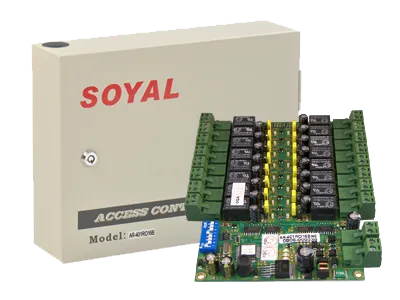

AR-401-IO-0016R 1
