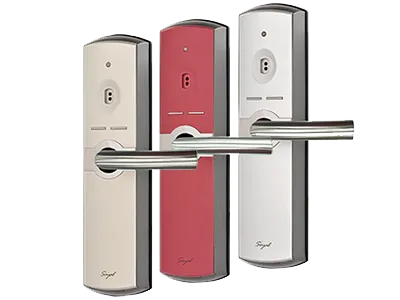

AR-323 (D)

Name
Digital Door Lock (RF Card)

• Features
• Available for Standalone and Networking System
• Builtin SOR Mifare Advantages
• Set up Expiry Date
• Value Stored Capability and Global Access Control
• Capability to execute the commands of Mifare Card
• Builtin Calendar
• Door Alarm Prompt (Unclosed and ForceOpen)
• Capability to Unlock by Mechanical Key
• External a battery to emergency power support

Specification
Frequency	13.56MHz
Standard	ISO14443A/B+15693
	ISO15693
Reading Range	0-2cm
Operating Temperature	-20℃ to +60℃
Thickness	US : 40mm-44mm
	45mm-49mm
	50mm-54mm
	55mm-59mm
	60mm-64mm
	65mm-69mm
	70mm-74mm
	75mm-80mm
Opening Method	LH
	LHR
	RH
	RHR
Operating Humidity	15% - 95% RH
Unlock	Mifare Card / Mechanical Key
Respond Time	< 1.5 Sec.
Low Battery Voltage Warning	Yes(< 5.3 VDC)
Low Battery Voltage Solution	External a 9 VDC battery to emergency power supply
Power	Standalone : 6VDC (LR6-AA x 4, 2500mAH)
	Networking : 12VDC (Power supply by converted of the AR-321DAX1)
Current	Standalone : < 80μA
	Networking : < 50mA
Battery Life	Standalone : About 8 months (6 times per day)
	Networking : Don't battery
Housing Material	Zinc Alloy

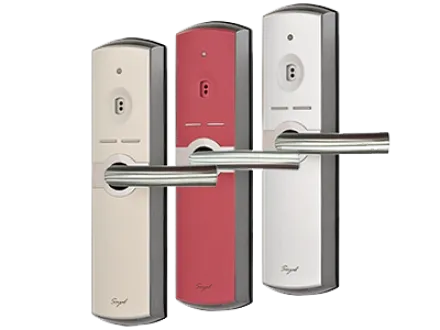

Color	Champagne Gold / Silver / Crimson
Weight(g)	3.9(kg)
Accessory	Standalone : Master Card x 2, Battery(LR6-AA) x 4
	Networking : AR-321DAX1(Exclusive for AR-323D)
