Swing Flap Gate Turbo Q306AN 1 turbo_a306

Turbo Q306AN

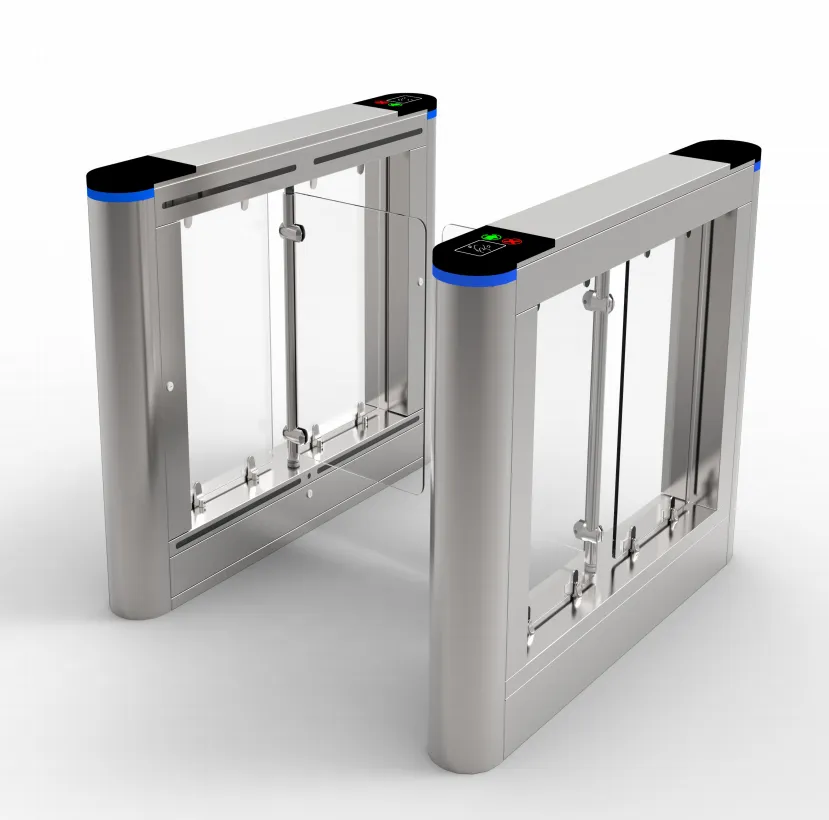

All the gates models are space efficient security barriers, with a compact design,yet offer sufficient space to integrate any access control system. They can be mounted with display, passage counter, card reader, token operation traffic lights, command console,alarm system, against unauthorised entries,interfaced with a PC through a RS232(RS485,TCPIP)line

1.Size: 1400x185x1020mm
2.Unlock time: 0.2s
3.Pass rate: 35 person/min
4.Pass width: ≤900mm
5.Input: 100V~240V
6.Motor voltage: 24v
7.Environment: -25~+70
8.Power cunsumption: 35w

• Use IC cards,ID cards, Bar code or magnetic cards as automatic identification system and achieve access, attendance fees or function • A direction indicator, showed that pedestrian access to the current status of, and guide pedestrians correct and smooth passage • Display has been in use for statistics and numbers • With voice and strobe light alerts • A combination of infrared sensors and police antiillegal entry into pedestrian access, the protection of pedestrians smooth and the prevention of the channel following • Double anticlipping function,photocell anticlipping and mechanical anticlipping • Auto reset function, if no passing during identified cardreading time,the system will reset automatically the passengers are prohibited to pass until their second identified reading • The barrier can be set to delay closing in 160s after a valid cardreading
