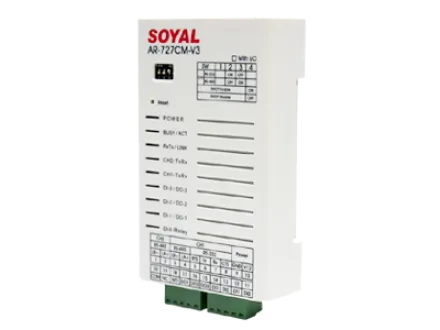

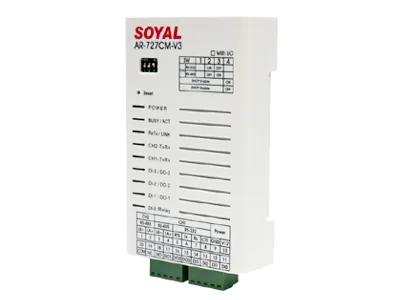

Conventer & Repeater AR-727CM 1 ar_727cm

AR-727CM

Name
Serial to Ethernet Device Server

Features
• 1kB queue input and output buffer
• Controller connect directly to the networking, does not require conversion by the computer
• The serial ports include RS485, RS232 (By order), or RS485+RS232 (By order)
• Able to link readers and PC to achieve Networking Access Control
• Network Protocols: ARP/ IP/ TCP Client/ UDP/ ICMP/ HTTP/ DHCP/ NetBIOS/ SNMP V1, V2, V3,
• Indicators for power and communication, for debugging and status
• Surge protection : 16 kV

Specification
Frequency	10/100M Base T Ethernet ←→ RS-485
	10/100M Base T Ethernet ←→ RS-485/RS-232(Optional)
Power Supply	9-16VDC
Data Transfer Rate	4800 bps - 115200 bps
Power Consumption	< 2W
Operating Temperature	-20℃ to +60℃
Active Distance	50m(RS-232) / 300m(RS-485)
Buffer (Serial Port)	1024 bytes
Protocol	ARP
	DHCP
	IGMP V2
	TCP/UDP
	SNMP V1,V2,V3
Isolation	16kV ESD
Dimensions(mm)	106.5(L)X66(W)X27.7(H)
Weight(g)	86±5
