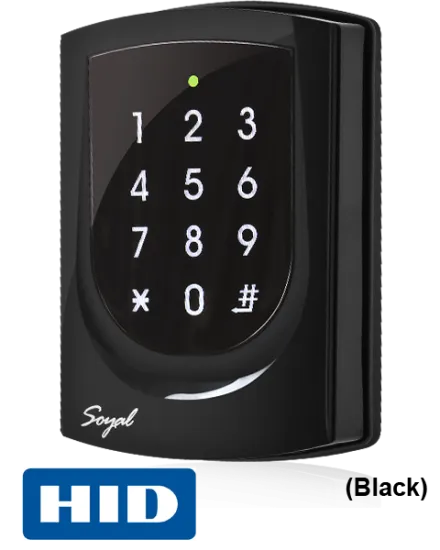

RFID Controller (With Keypad) Soyal HID - AR-725ESIA-Illuminated Touch Keypad Multi-Function Controller 1 ~blog/2023/1/18/ar_725e_foto_produk_1_with_hid

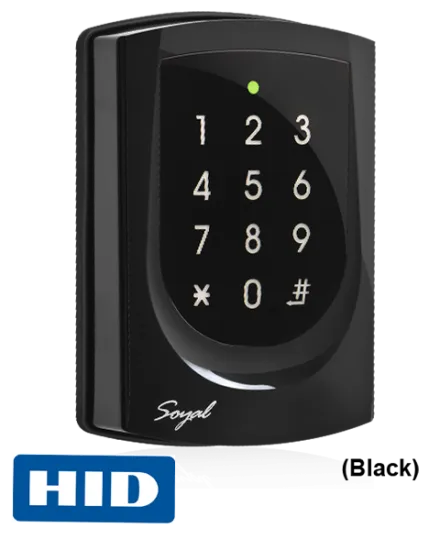

RFID Controller (With Keypad) Soyal HID - AR-725ESIA-Illuminated Touch Keypad Multi-Function Controller 2 ~blog/2023/1/19/ar_725e_foto_produk_2_with_hid

Soyal HID - AR-725ESIA-Illuminated Touch Keypad Multi-Function Controller

Home /

Products /

RFID Controller (With Keypad) /

Soyal Controller with Support HID Multiclass (HID Proximity and IClass HID)
◎Metal Frame Selectable
◎Invisible Keypad
◎Backlight Touch Keypad
◎Support SOYAL Cascade Structure
◎HTTP WEB Server Remote Management
◎2 Sets of UART Ports
◎Communication Redundancy

Features
• RS¬485 and TCP/IP communication interface
• Built¬in Watch Dog to prevent the halting
• User capacity: 16,000; Event logs: 32,000
• 2 control modes: M4/ M8
• Access Mode: Card Only, Card or PWD, Card and PWD
• 63 auto¬open zone settings and 16 sets of Auto¬Open Zone editable
• WG port provides anti¬pass¬back function
• One more Exit Switch, Door Contact and Door Output to wiegand
• Built¬in Multi¬Output: Door Lock/ Alarm/ Arming/ Duress/ Security trigger signal
• SOYAL software support for networking
• Easily integrated with SOYAL or others access control system
• Use the illuminated Touch¬panel for keypad, can enhance the anti¬ wear and the weatherproof
• Metal frame to avoid violence(AR¬725E¬V2¬M)
• Elegant design with colorful housing to choose
• Illuminative¬Key, 1 bi¬color indicator and 1 beeper for identification
• Built¬in Real Time Clock & Anti¬Tamper functions
• Flexible to integrate with other equipments
• 125kHz and 13.56MHz can be used simultaneously two channels
• Patent for new type of Relay, avoid vibrating to Mis¬Trigger
• TTL or RS¬485 serial output for various application and lift control
• Built¬in 16 set of Alarm and 120 days of Holiday setting
• Coordinating with softwares for further application on access control, time attendance, payroll, anddoor/sensor image¬monitor function
• Auto¬lock of the keypad for 30 seconds after continuous failed operation by 3 times
• Including the input of door contact, offering the alarm system of both door opening too long and beingforced to open
• Intelligent to shift for standalone or networking mode while system disconnected
• Support Fire buttons to make sure the fire happening, all doors open
• Supporting AR¬721_RB Relay Output module alternates traditional relay module, raise security, resist from stealing, and avoid wrong operation.

Specification

Frequency / UID Bits / RF Reading Range

		B (125Khz)	D (13.56Mhz)	S (Dual Band)
Frequency		ISO18000-2: EM4001 and EM4095 compatible, HID Proximity	ISO14443 /ISO 7816-4 Mifare Ultralight, Classic, Plus / DESFire EV1, EV2 / NFC (card simulation) /ISO15693 / Felica / HID Iclass	125kHz: ISO18000-2: EM4001 and EM4095 compatible 13.56MHz: ISO14443 /ISO 7816-4 Mifare Ultralight, Classic, Plus / DESFire EV1, EV2 / NFC (card simulation) /ISO15693 / Felica / HID Multiclass
UID Bits		24~64 Bit (Adjustable)
RF Reading Range	PC Housing	10-15 cm	2-8 cm	2-15 cm
RF Reading Range	Metal Housing	5-9 cm	2-5 cm	2-9 cm

RFID Crypto / Communication interface

	B (125Khz)	D (13.56Mhz)	S (Dual Band)
RFID Crypto	—	CC Certification: AES Crypto comply with EAL5+
Host	RS-485 (9600 bps) TCP/IP (Optional By Order) POE (Optional By Order) SSC (Soyal Security Communication)
Serial	TTL UART (4800~115200 bps) X2 (half-duplex)
Wiegand Input	Wiegand 26~64
Wiegand Output	Wiegand Data 0, Data 1 and Arming Output, Duress Output share the same terminal

*SSC (SOYAL SECURITY COMMUNICATION) :To enchance security of communication

DI/DO (Doors Control:2)

	Main Controller	Wiegand Output Port
DI	Egress X1 Door Status X1	Egress X1 Door Status X1
Door Lock Output	Door Lock Relay X1	Open Collector X1
Alarm Output	Open Collector X1
Wiegand Port	—	Wiegand Data 0 Intput X1 Wiegand Data 1 Intput X1 Red LED Output X1 Green LED Output X1 Beeper Output X1
Open Collect Output	Arming Output X1 Security Trigger Signal X1 Duress Output X1
Tamper	Limit switch (1 Form C/ 1000mA / 30VDC)

User Capacity / Floors Number / Event Log

User Capacity / Floors Number	16,000 Users/64 Floors (Default value)；32,000 Users/32 Floors；65,000 Users/16 Floors
Event Log	32,000

Hardware Specifications

Power Voltage		9-24VDC
Flash memory		Capacity 32Mb (The user data and event logs can be stored for more than 10 years after power off)
RTC		RTC clock can be maintained for 14 days after power off, and the time error per week is within 1 minute (vary depending on the installation environment)
CPU		ARM Cortex M3 (32 bits)
Power Consumption		<5W
Indicator	LED	1 Bi-Color LED (Green/Red)
Indicator	Buzzer	1
TAMPER		Limit switch (1 Form C/ 1000mA / 30VDC)
Housing Material		PC / PC+Metal
Color		Black
Keypad		Illuminated Touch-Panel /* Invisible Keypad Function
Dimension (mm)	PC Housing	110(H)X79(W)X26(D)
Dimension (mm)	Metal Housing	125(H)X89(W)X30(D)
Net Weight(g)	PC Housing	approx. 120
Net Weight(g)	PC Housing	approx. 470
Ingress Protection		IP55
Environment	Operating Temperature	-20℃ ~ +70℃
	Storage Temperature	-40℃ to +75℃
	Operating Humidity	0%~90% (non-condensing)
	Storage Humidity	0%~95% (non-condensing)
