RFID controller (Without Keypad) RFID ACCESS CONTROL - AR-723 (H) 1 ar_723_h

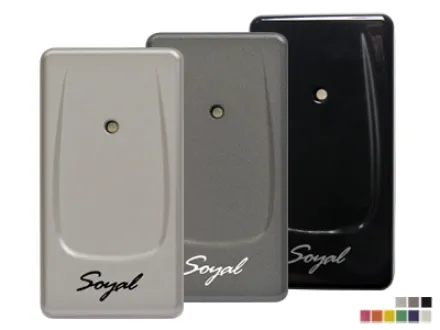

RFID ACCESS CONTROL - AR-723 (H)

Name
Proximity Access Controller
Description
Simple access control, Housing dimensions is small and short.

Features
• Selectable working frequencies: 125kHz/ 13.56MHz
• User capacity: 1,024; Event log: 1,200
• Built¬in Watchdog to prevent system from hanging
• Including the input of door contact, offering the alarm system of both door opening too long and being forced to open
• Built¬in Multi¬Output: Door Lock/ Alarm/ Security trigger signal
• 1 bi¬color LED and 1 beeper for identification
• Have the "MASTER CARD" functions, convenient operation
• Small and short

Specification
Frequency	125kHz or 13.56MHz
Standard	125kHz : EM Standard
	13.56MHz : ISO14443A
	ISO15693(Option)
	DESFire(Option)
	PSAM(Option)
	NFC(Option)
Reading Range	125kHz : 5-12cm \| 13.56MHz : 2-8cm
Power Supply	9-24VDC
Power Consumption	< 1W
Communication Interface	RS-485
Data Transfer Rate	9600 bps(N,8,1)
Operating Temperature	-20℃ to +60℃
Digital Input	Egress(R.T.E.) / Door contact
Lock Relay Time	Toggle, 0.1~600 Sec.
Alarm Time	Toggle, 1~600 Sec.
Tamper Switch	No
User Capacity	1.024
Event Log	1.200
External Reader	FOR WGKEYBOARD operation
Anti-pass-back	Yes
Lift Control	32 Floors, 1,024 Users
Serial Port	Yes
Real Time Clock	Yes
LCD Panel	No
Door Bell Button	No
Transistor Output	Lock/ Alarm / Security trigger signal
Protection Standard	IP56(Option)
Indicator	1 Bi-Color LED & 1 Beeper
Keypad Material	No
Housing Material	ABS
Time Zone	11/63(Connect to Multi-Door Networking Controller)
Operation Mode	Stand-Alone / Networking
Color	Black / Gray / Silver / Pearl White / Blue / Green / Yellow / Orange / Red
Dimensions(mm)	81(L)X43(W)X18(H)
Weight(g)	125kHz : 40±5
	13.56MHz : 60±5
External Edit Keypad	AR-WG-KEYBOARD
