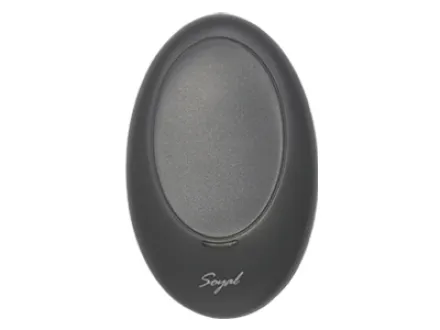

SOYAL ACCESS CONTROL - AR-737 (H-R)

Name
Proximity Access Controller (By Order)
Description
Built¬in RTC and capability to be as either a stand¬alone or networking controller.
(Phased Out and Replaced by 723H/721U)

Features
• Selectable working frequencies: 125kHz/ 13.56MHz
• User capacity: 1,024; Event log: 1,200
• Built¬in Watchdog to prevent system from hanging
• Door Lock Output
• 2LED and 1 beeper for identification
• Small and short

Specification
Frequency	125kHz or 13.56MHz
Standard	125kHz : EM Standard
	13.56MHz : ISO14443A
	ISO15693(Option)
	DESFire(Option)
	NFC(Option)
	PSAM(Option)
Reading Range	125kHz : 5-12cm \| 13.56MHz : 2-8cm
Power Supply	9-24VDC
Power Consumption	< 1W
Communication Interface	RS-485
Data Transfer Rate	9600 bps(N,8,1)
Operating Temperature	-20℃ to +60℃
Digital Input	Egress(R.T.E.) / Door contact
Lock Relay Time	Toggle, 0.1~600 Sec.
Alarm Time	Toggle, 1~600 Sec.
Tamper Switch	No
User Capacity	1.024
Event Log	1.200
External Reader	No
Anti-pass-back	Yes
Lift Control	No
Serial Port	No
Real Time Clock	Yes
LCD Panel	No
Door Bell Button	No
Transistor Output	Lock(Connect to Multi-Door Networking Controller)
Protection Standard	IP56(Option)
Indicator	2 LED & 1 Beeper
Keypad Material	No
Housing Material	ABS
Time Zone	11/63(Connect to Multi-Door Networking Controller)
Operation Mode	Stand-Alone / Networking
Color	Gray
Dimensions(mm)	113(L)X71(W)X36(H)
Weight(g)	80±10
External Edit Keypad	No
