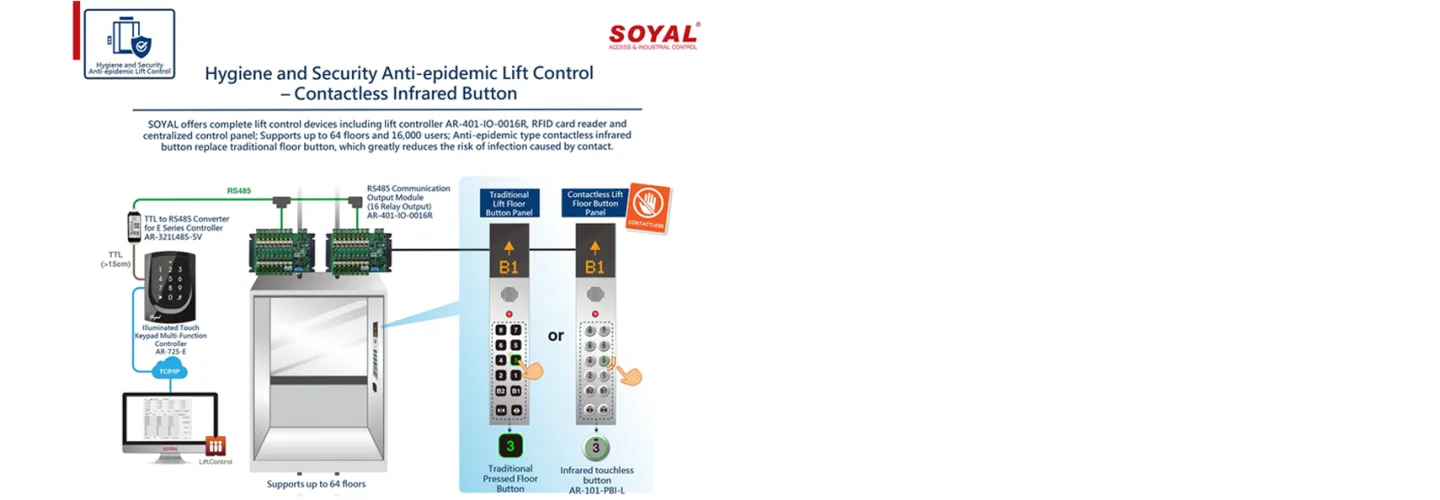

With Touchless Lift Control Solution, just swiping card, automatically the elevator arrives at the designated single floor, no Button pressed, No Infection. Touchless lift control solutions is a feature for users to reach a designated single floor by swiping the user card only without pressing the elevator button rather than reading a user card and pressed the floor button. It's a special application that suited in the environments that require high hygiene security level such as hospital, Maternal and Child Center, confinement center etc. Usually each individuals user may have access to a single floor besides the public floors in the community buildings. It's not only for reaching a single floor but also enabling access to the public floors such as lobby, lounge, roof, etc. alt text alt text alt text alt text



Solution 1.

 When there are one floor button panel in lift, we can use one Mini controller AR-101-HD with 2 units of lift controller AR-401-IO-0016R for 1024 users and 32 floors control. alt text





Solution 2.

When there are two floor button panels in lift, we can use one mini WG reader AR-101-US that connect to mini controller AR-101-HD with 2 units of lift controller AR-401-IO-0016R for 1024 users and 32 floors control.







alt text



Solution 3.

When there are two floor button panels in lift, we can also use two mini controller of AR-101-HD to connect 2 units AR-401-IO-0016R for 1024 users and 32 floors control.

alt text



Solution 4.

When the user card capacity is more than 1024, we can connect AR-101-HD to multi-door control panel AR-716-E16-M-A to manage 16,000 users and 32 floors.
